The Black Mamba

Body Separation

The transformation of the Black Mamba began with a decisive and irreversible step - the complete separation of the Mustang body from its original unibody structure.

The stock 1968 "A-code" fastback arrived at Henry's Hot Rods in Shingle Springs, California, where it quickly became clear that the factory structure would not support the performance goals of the build.

Using an oxy-acetylene cutting torch, Ron Pepper methodically cut through the floor pans, inner wheel wells, and trunk structure. What had once been a complete vehicle was reduced to its outer shell.

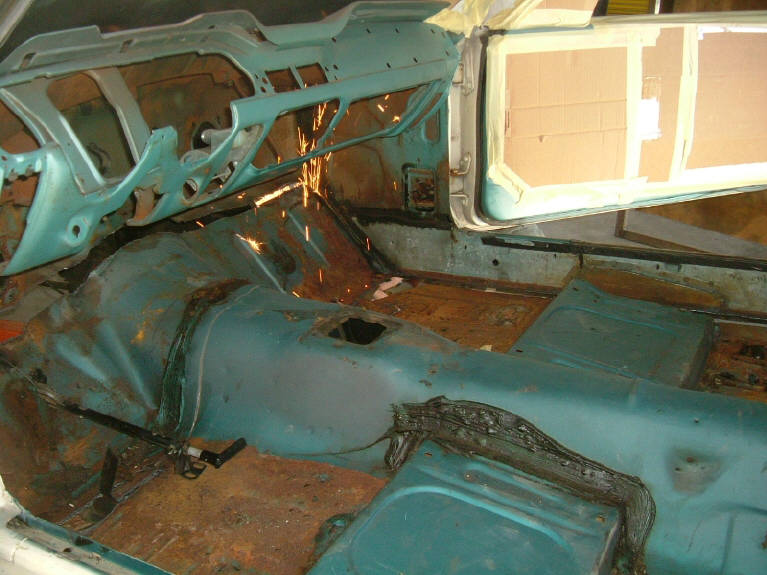

Initial cutting of the Mustang unibody structure
Initial cutting of the Mustang unibody structure

With the structural cuts complete, the body was separated from the remaining chassis. With the help of Dave Henry and a forklift, the body was lifted free - marking the point where the build transitioned from modification to full custom construction.

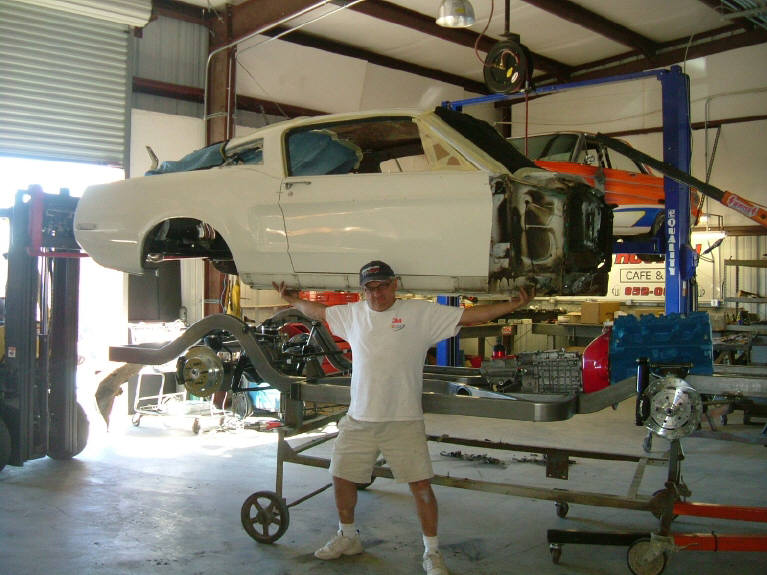

Body being lifted from the original unibody
Body being lifted from the original unibody

The newly freed body was then positioned onto the Art Morrison Max-G chassis, where it was carefully aligned and tacked into place.

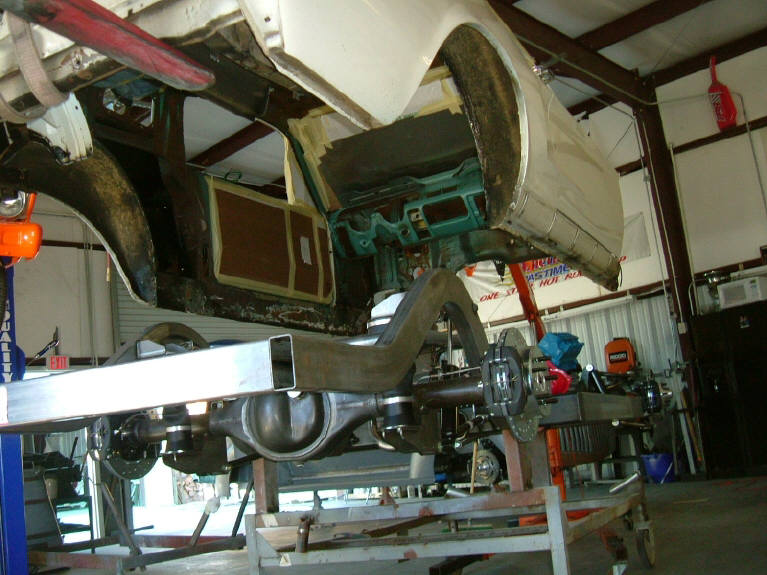

Body positioned and aligned on the Morrison chassis
Body positioned and aligned on the Morrison chassis

What remained of the original unibody - now reduced to a rolling shell - was removed and dismantled. From this point forward, the Black Mamba would no longer be a modified Mustang, but a fully re-engineered vehicle.

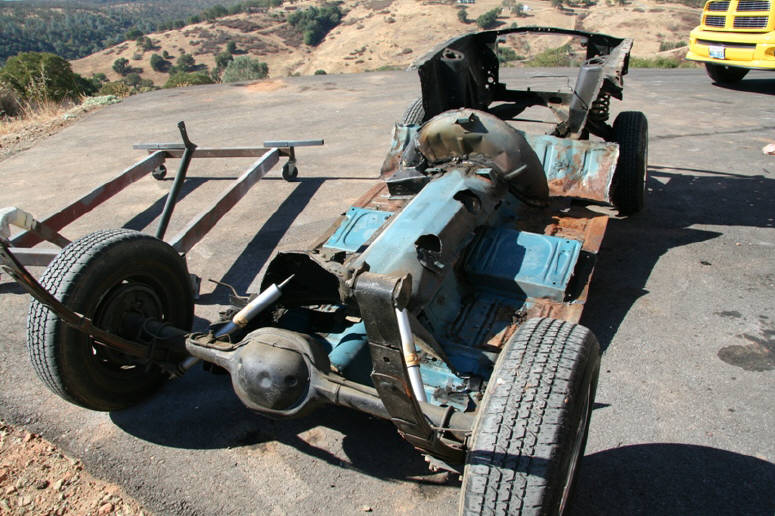

Original unibody structure removed and discarded
Original unibody structure removed and discarded
